When you are viewing your frost fan site and look at the map image you will see your group of fans and may notice some are showing various different colors.
Any fan which is running will always be showing in Blue.
Otherwise, expect fans which are not running to generally be green, provided they are in Auto mode.
If there is a small blue dot next to the fan icon then this means there is other information available about this fan such as "Start check overdue".
Any fan which has a fault will show in Red.
Orange refers to a warning and/or the fan is in manual mode.

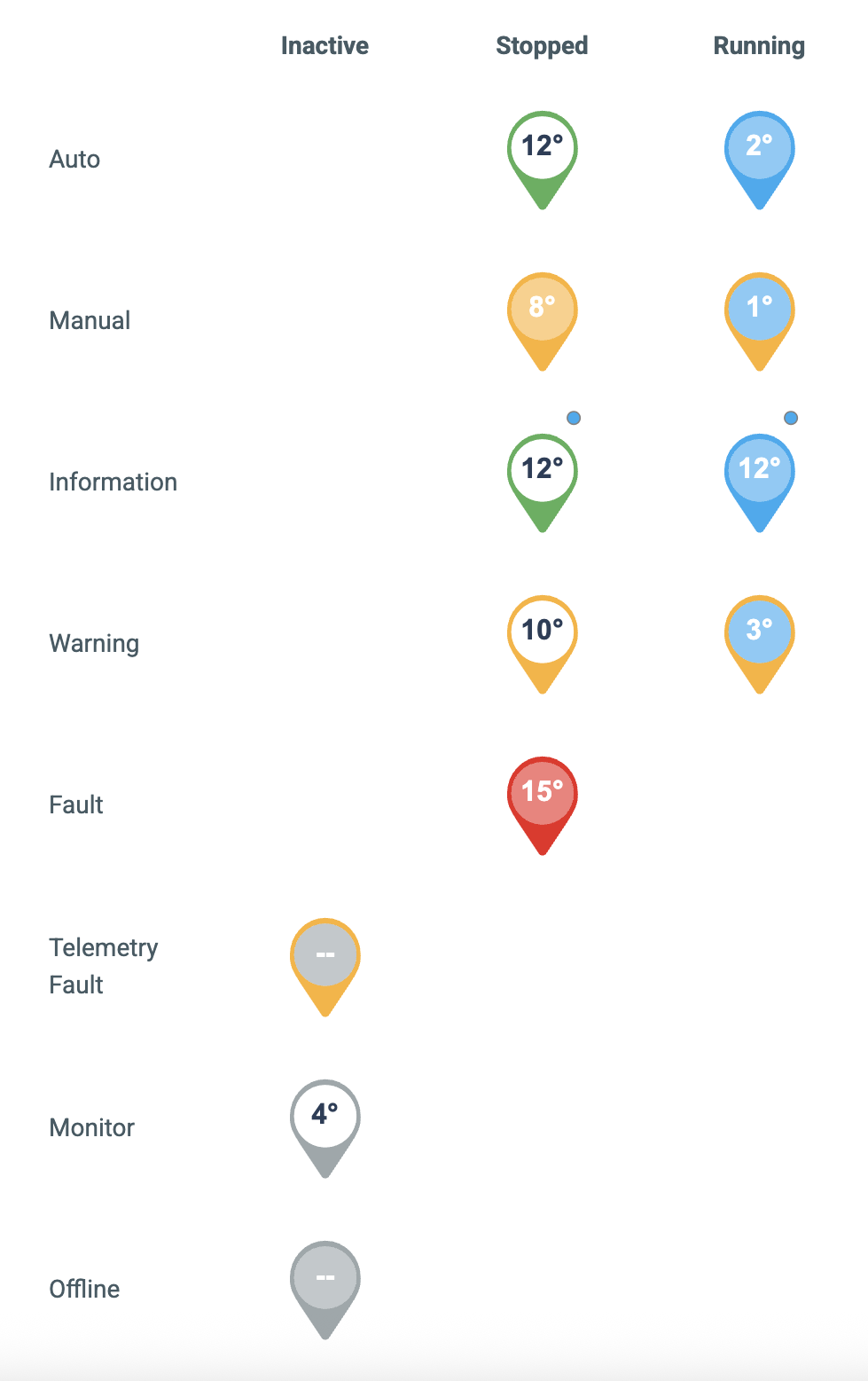

Please refer to the table below which explains each fan status and the various colors.
This information is also showing in the fan table at the left side of your screen.
The table is grouped as follows:
Fan Status - Alert/information (if applicable) - Fan Mode
Below is a summary of each fan state
Auto mode
The fan is operating normally
Stopped
Manual mode
The fan is operational but must be manually started or stopped
Stopped
Warning
The fan is operational but has issued a warning which needs attention.
Stopped
Fault
The fan is NOT operational.
Stopped
Monitor
The fan is in monitor mode.
It will not run if the temperature is low
We only monitor the data.
Offline
No current data reported from this fan.
